4-Channels scope, suitable for use with any modern vehicle.

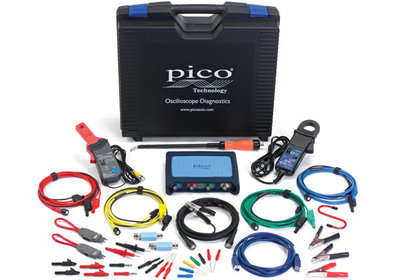

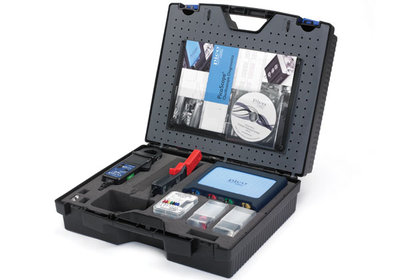

The Pico Automotive Diagnostics Kit turns your laptop or desktop PC into a powerful automotive diagnostic tool for fault finding the increasing number of sensors, actuators and electronic circuits found on today’s vehicles.



The automotive kit is based around the highly successful range of Pico automotive oscilloscopes.

These high resolution PC oscilloscopes connect to a USB port on your PC and can take up to 32 million samples per trace, making it possible to capture complex automotive waveforms – including CAN bus and FlexRay signals – and then zoom in on areas of interest.

Being PC-based these waveforms can then be saved to your PC for future reference, printed or emailed.



The Pico Automotive Diagnostics Kit can be used to measure and test virtually all of the electrical and electronic components and circuits in any modern vehicle including:
