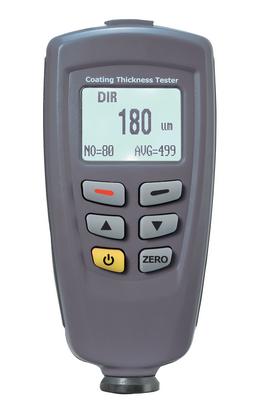

Test instrument for the non destructive measurement of the thickness of surface coatings on iron and non-ferrous metals.

Features:

• Dual technology features an automatic selection of magnetic induction or Eddy current measurement techniques


• Ideal for :
  - non-magnetic coatings(e.g. paint, zinc) on steel
  - insulating coatings (e.g. paint) on no-ferrous metals
  - no-ferrous metals coatings on insulating substrates


• Two measuring modes: CONTINUE and SINGLE mode


• Two working modes: DIRECT and GROUP mode


• Statistic display: AVG, MAX, MIN, NO., S.DEV


• One point calibrating, two points calibrating and basic calibrating easily


• Memory for 400 readings (80 DIRECT and 320 GROUP readings)


• Delete single readings and all group readings easily


• High alarm and Low alarm for all working mode


• Low battery, error indication


• USB interface for PC software(windows 98/2000/xp/vista)


• Measuring range 0~1250 um


• Guaranteed tolerance (of reading) +/- 3%+1.5 um


• Low range Precision 0.1 um - 0.1 um


• Minimum curvature radius 1.5 mm - 3 mm


• Diameter of Minimum area 7 mm - 5 mm


• Basic critical thickness 0. 5mm - 0.3 mm


Includes:

• 2 “AAA” batteries


• USB cable


• CD


• Calibration iron


• Calibration aluminum


• Precision standard

Also includes a carrying case!
