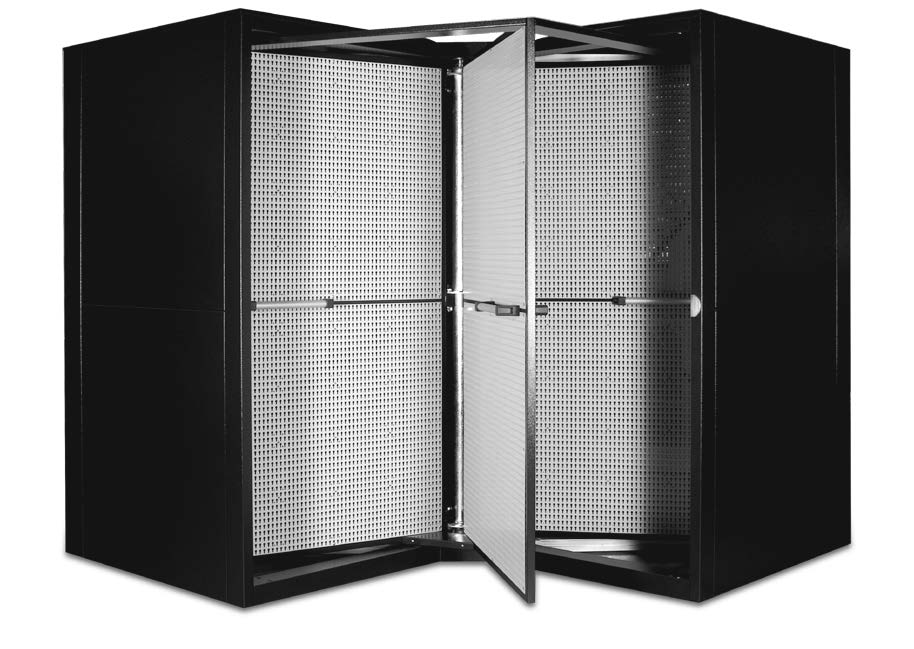

The tool carousel is an efficient and secure way of storing tools, components and cables in workshops where corner spaces have not been fully utilised.

The load-bearing steel frame construction is equipped with a mechanical locking system. Further add-on cabinets can be fitted at any time.

The version with a heavy-duty turning mechanism has a loadbearing capacity of up to a tonne. The tool carousel rotates noiselessly and is equipped with an emergency brake.

With a total of 16 boards of 1050 x 1000 mm each it requires only 6.25 square metres of floor space!

With the usage of add-on internal wings it is possible to increase the number of tool boards up to a maximum of 32 boards (4 add-on internal wings with 4 boards each possible).

Features:

• Protects tools from dust and dirt


• Theft and loss proof


• Expandable modular design


• Variable internal configurations


• Suitable for heavy loads


• Space-efficient modular design: unique corner unit with space for up to 32 boards (with internal wings)


• Heavy-duty turning mechanism supports up to a tonne


• Safety feature to prevent finger trapping


• Emergency brake

Technical Specifications - Cabex® III Carousel :

• Dimensions (closed): 2500 x 2500 x 2230 mm


• Used space (closed): 6,25 m2


• Storage space: 16,80 m2


• Max. payload: 1.000 kg (200 kg each arm)


• Shipping dimensions: 1155 x 1122 x 2315 mm


• Shipping weight: 1.020 kg
