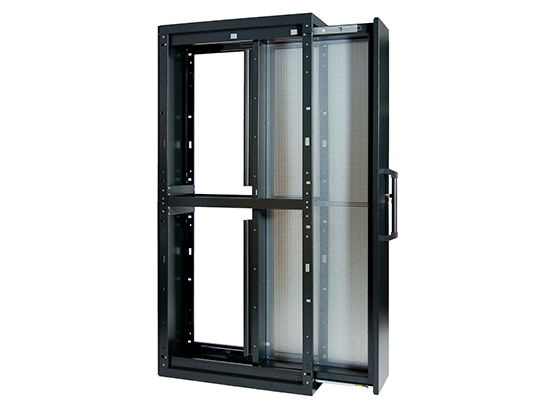

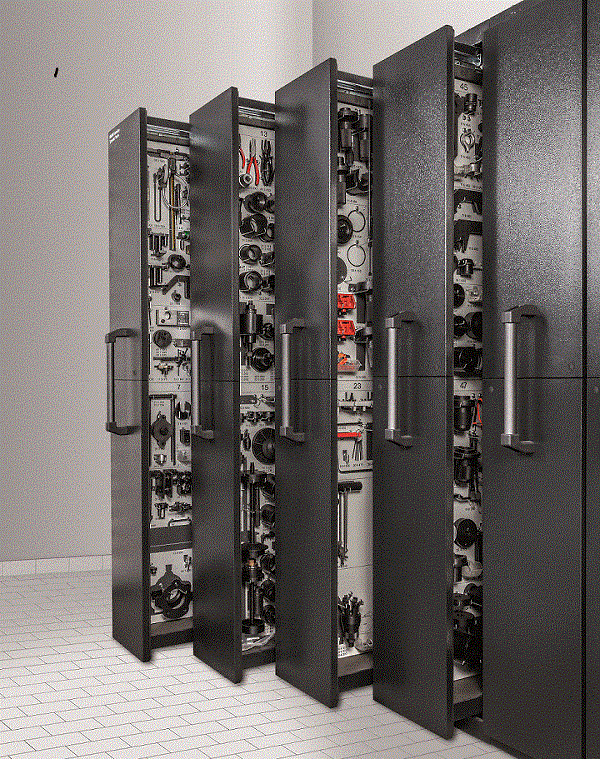

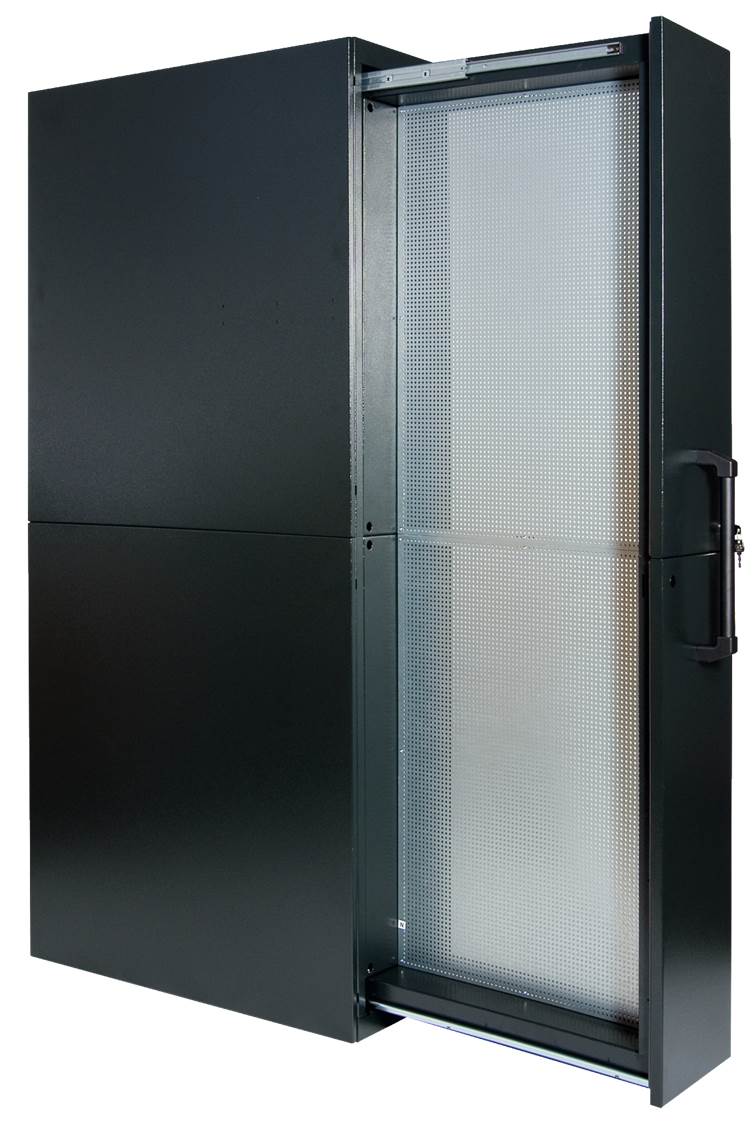

The Cabex® II Cabinet provides a protective environment for your special tools. It offers a large storage space on a very small surface area. The cabinets are modular in design and can be reorganised and extended as required.

Our cabinets offer multiple storage solutions for your tools. The extensive range of hooks, brackets, etc.means the panels can hold tools of all shapes and sizes. In addition, a 630 mm broad version gives you the opportunity to store your electronic equipment, like adapter cables, in a safe place with two additional internal wings.

A new developed rail system allows a max. payload of 250 kg without the need of any support with rollers.

Features:

• Lends a high-quality appearance to your workshop


• Enables efficient utilisation of floor space


• Provides secure, lockable system for valuable tools


• Offers expandable modular design


• As on option the cabinet can be equipped with an electronic locking system

Technical Specifications - Cabex® II 630 :

• Dimensions (closed): 1144 x 630 x 2230 mm


• Dimensions (pulled out) 1824 x 630 x 2230 mm


• Used space (closed): 0,7 m2


• Used space (pulled out): 1,15 m2


• Storage space: 6,66 m2


• Max. payload: 200 kg


• Shipping dimensions: 1120 x 690 x 1270 mm


• Shipping weight: 300 kg
