479 3502 001 00

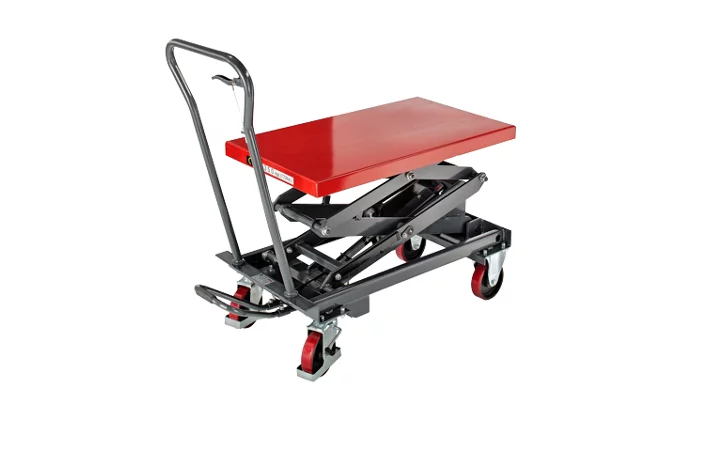

Lifting platform trolley: 350kg
|
|
|
|
Continue Shopping
|
DetailsDownload
|
Product Weight:
125 kg
|
|
|
|
|
Description:
|
|
Lifting table
Lifting range 435 – 1500 mm, max. Load 350 kg
Lift with pump pedal, precise manual control of lowering. Durable and sophisticated devices. Service-friendly, with inspection supports.

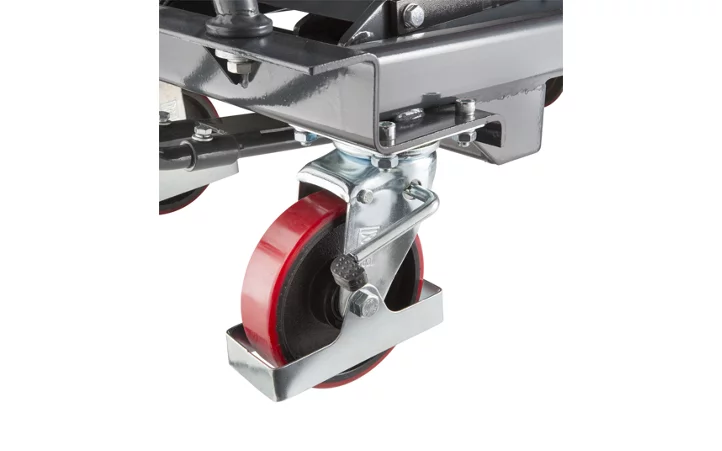

Wheels
Two swivel castors with foot protection and wheel stop and two fixed castors. All castors with non-marking polyurethane tires.

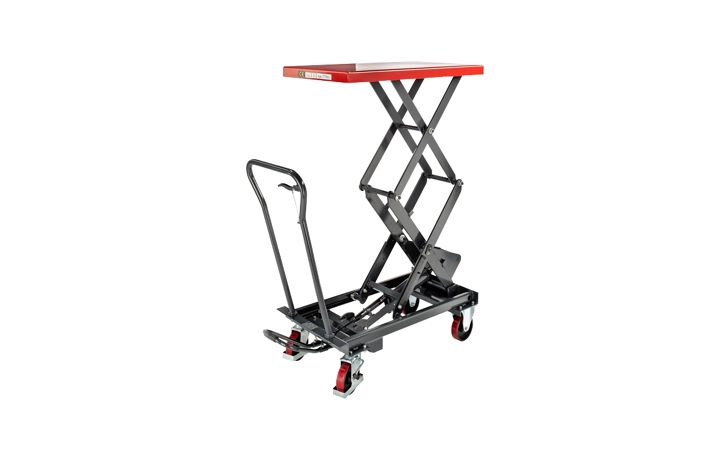

Version with extra-large lifting height
- Standard units in reliable quality
- Lift, lower, transport
- Ergonomic work at the right working height
- With double scissor mechanism
Technical Data
Max. load |
350 kg |
Lifting range |
435 – 1500 mm |
Overall length |
1170 mm |
Overall width |
520 mm |
Platform material |
steel |
Platform finish |
powder coated |
Platform colour |
signal red RAL 3001 |
Push handle finish |
powder coated |
Push handle colour |
basalt grey RAL 7012 |
Lift per pedal stroke |
15.2 mm |
Pedal strokes to max. lift |
70 |
Lift drive |
pedal hydraulics |
Product type |
double scissor lifting platform truck |
Wheel fittings |
2 swivel castors with foot protection
and wheel stops, 2 fixed castors |
Wheel material |
polyurethane |
Wheel diameter |
150 mm |
Wheel bearing |
ball bearing |
Frame finish |
powder coated |
Frame colour |
basalt grey RAL 7012 |
Weight |
125 kg |
Platform width |
520 mm |
Platform length |
920 mm |
Feature |
mobile manual |
Supplied |
partially assembled |
|
|
|
