262 4505 001 00

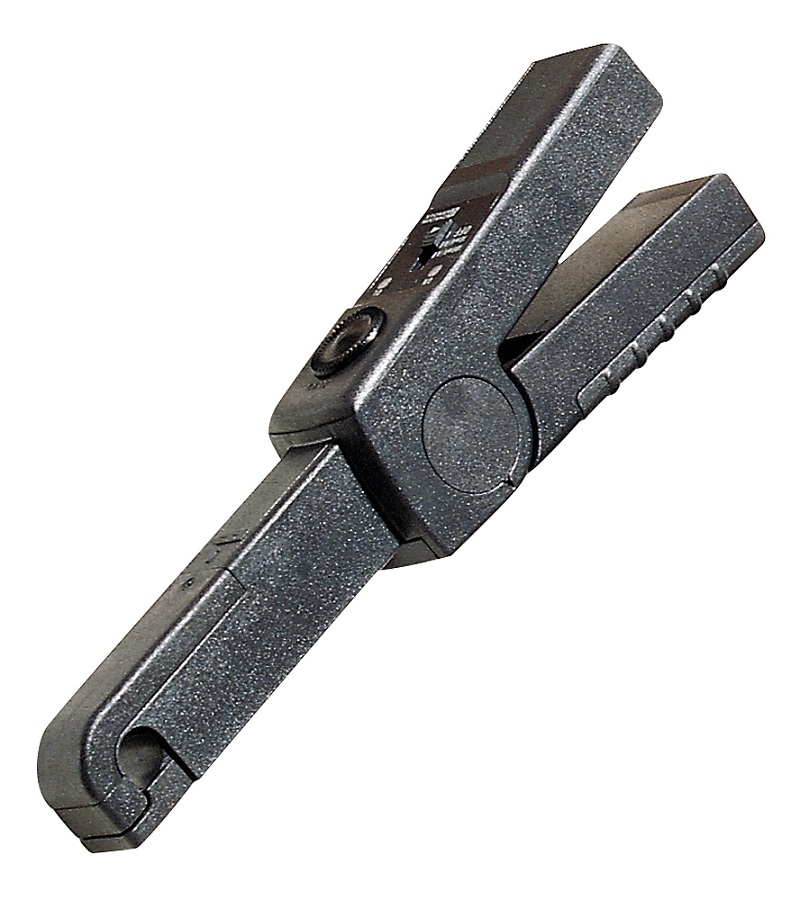

E6N AC / DC current clamp incl. power supply
Clamp for direct and alternating currents from a few mA up to 80 A
|
|
|
|
Continue Shopping
|
DetailsDownload
|
Product Weight:
0.5 kg
|
|
|
|
|
Description:
|
This current clamp usesthe Hall-effect clamps to measure AC and DC currents.
The long, narrow shape of these clamps makes them ideal for measuring in cable strands, in confined spaces such as switchboards and in the electrical circuits of automotive vehicles.
The output signal is directly proportional in form and amplitude to the DC and AC components of the current measured. The E6N offers greater sensitivity for measuring low currents.
Main features of the E6N model:
- Rated current: 80 A AC/DC
- Output signal: DC and AC voltage
- Output / input ratio: 1 mV / mA, 1 mV / A
- Output via lead and isolated Ø 4 mm male plugs
Scope of delivery:
- E6N AC / DC current clamp
- Power supply
|
|
|
