222 4505 001 00

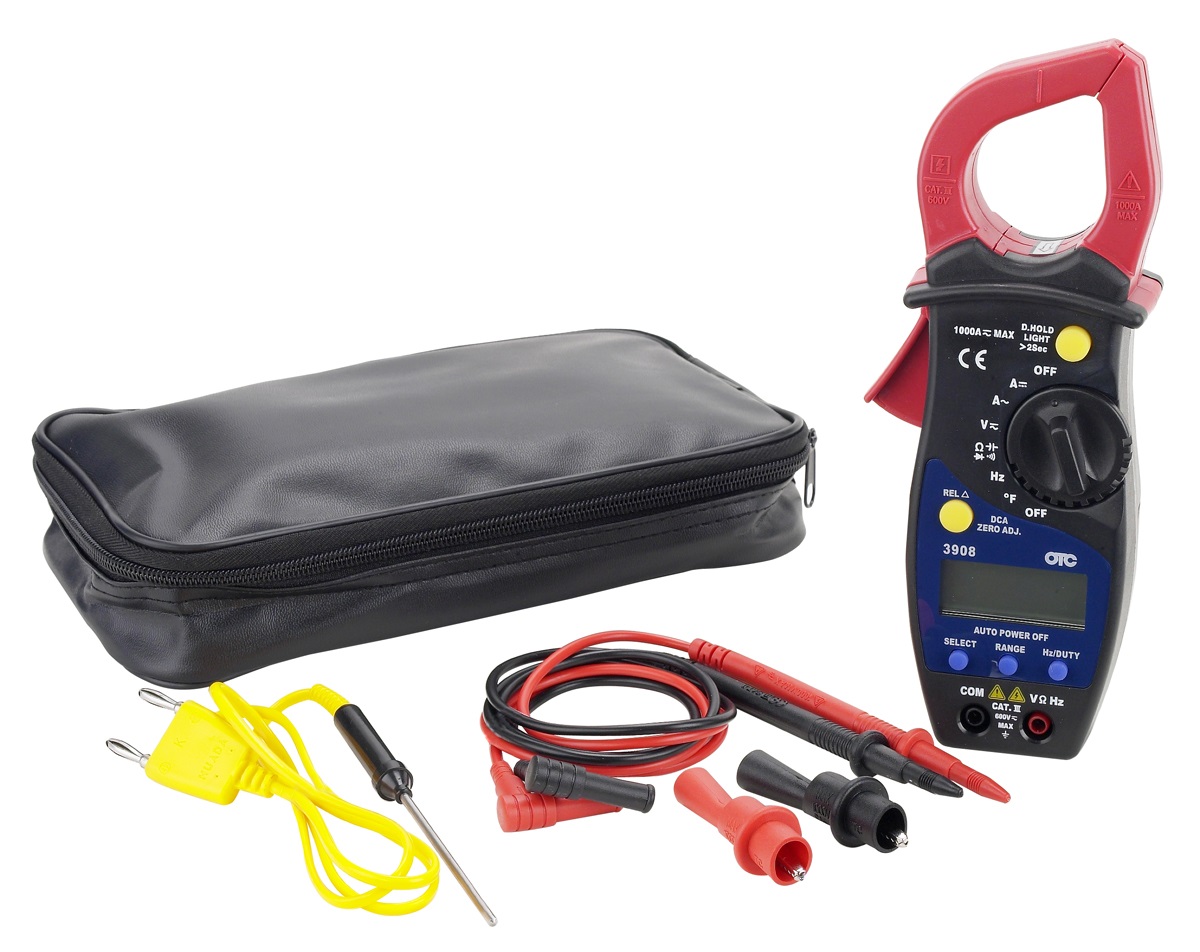

AMP Clamp/Multimeter
|
|
|
|
Continue Shopping
|
Details
|
Product Weight:
0.632 kg
|
|
|
|
|
Description:
|
"
AMP Clamp/Multimeter was designed to allow accurate current measurements using clamp jaws. The clamp meter is well suited for testing starting/ charging circuits, and provides easy access to current, voltage and other key automotive measurements, all in one easy to use tool.
Features:
Duty Cycle
Resistance
Capacitance
Diode
Continuity
Frequency
Temperature
Display maximum reading of 4000 counts
Range auto/manual
Automatic negative polarity indication
Automatic zero adjustment
Over range indication
Low battery symbol
Data hold symbol
Relative measurement symbol
Clamp opening size 32mm
Auto power off
Specifications:
AC/DC Voltage: 600V, AC/DC Current: 1000A
Operating Environment Temperature: 32 to 104°F (0°C to 40°C), Humidity: < 80% RH
Storage environment temperature: -4 to 140°F (-20°C to 60°C), Humidity: < 90% RH
Includes:
Test leads
Temperature probe
Soft carry case
9-volt battery
The meter is in compliance with the following standards:
IEC1010 double insulation
Over voltage category III (600 volts) (NEDA 1604 or equivalent)
|
|
|
